Diamater 1500 Rotary Vibrating Screen Food Processing CE Certificate
Introduction
SUS304 diamater 1500 food processing rotary vibration sieve sifter rotex vibrating screen can achieve outstanding screening, sieving,grading and filtering materials in powder, particle, mucilage form.It is composed of a top cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends,rotary vibrating screen is also as known as three dimensional screen because it can produce horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight.
In addition,diameters are available in 600mm,800mm,1000mm,1200mm,1500mm,1800mm, 2000mm, which can fully meet different requirement of feeding rate.
Food processing rotary vibration sieve sifter is widely used in many industries, covering food, chemical, ceramic, metallurgy, pollution treatment and so on, dealing with various kinds of materials.
Working Principle
The vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. The direction of the eccentric weights can change its rotational mode, rotation of the upper weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery,while the lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The trajectories of materials on the screen can be changed by adjusting the phase angle of upper and lower weights.
Advantages and Features
1. Enclosed design, good sealing, zero dust pollution, environmental friendly
2. Unique screen frame design, convenient and easy for dismounting
3. Discharge outlet can be adjusted to any direction based on client’s need
4. Low energy consumption,low noise pollution,smooth operation,high sieving efficiency
5. Bouncing balls are provided to prevent blockage of the screen mesh
6. The amplitude and motion of the material are adjustable to meet various requirement
7. Material distributor available at inlet section to ensure evenly distribution on the screen
8. Complete models with different machine diameters to satisfy various capacity requirement
9. Inspection hatch can be provided to observe material distribution and running status
10. Vibrating motor brand can be domestic or imported as per your requirement
Technical Parameters
| Model | Nominal Diameter(mm) | Screen Diameter(mm) | Screen Surface Area(m3) | Feeding size (mm) | Specification | NO. of Layers | Frequency(rpm) | Power(Kw) |
| XZ-400 | 400 | 340 | 0.09 | <10 | 2-325 | 1-5 | 1500 | 0.18 |
| XZ-600 | 600 | 530 | 0.22 | <10 | 0.25 |
| XZ-800 | 800 | 720 | 0.4 | <20 | 0.55 |
| XZ-1000 | 1000 | 900 | 0.63 | <20 | 0.75 |
| XZ-1200 | 1200 | 1100 | 0.95 | <20 | 1.1 |
| XZ-1500 | 1500 | 1400 | 1.5 | <20 | 1.5 |
| XZ-1800 | 1800 | 1710 | 2.3 | <30 | 2.2 |
| XZ-2000 | 2000 | 1910 | 2.86 | <30 | 3.7 |
Note: the parameter above is just for reference,it can be customized by different requirment.
Selection Conditions
| ♦ Material to be processed: _____ | ♦ Max. granule size of the feeding material: _____mm |
| ♦ Handling capacity (Ps. It means the total | ♦ Layer number: ______ |
| material capacity feeding from the inlet): _____t/h | ♦ Mesh size of each layer: _____mm |
| ♦ Bulk Density: _____t/m3 | ♦ Particle distribution percentage:____________ |
| ♦ Material temperature: _____ºC; | (please check the following example to help you |
| ♦ water content:____% | understand it.Supposing the layer number is 2 |
| ♦ Material is corrosive or not: ____ (Ps. Yes or No) | and the aperture size of each layer is 10mm and 5mm, |
| ♦ Material is sticky or not: ____ (Ps. Yes or No) | then you will get 3 kinds of products: X,Y and Z. |
| ♦ Working environment is indoor or outdoor: _____ | X≥10mm; 5mm≤ Y < 10mm; Z<5mm. |
| ♦ Working environment temperature: ______ ºC | We want to confirm the following information: |
| ♦ Upstream equipment (Ps. It means what kind of | 1)The percentage of X in the whole material:_____%; |
| equipment is used to feed the material): _____ | 2)The percentage of Y in the whole material:_____%; |
| ♦ Downstream equipment (Ps. It means what kind of | 3)The percentage of Z in the whole material:_____%;) |
| equipment is used to discharge the material): _____ | ♦ Working power supply: _____V ______HZ |
Product Tags:
|
|

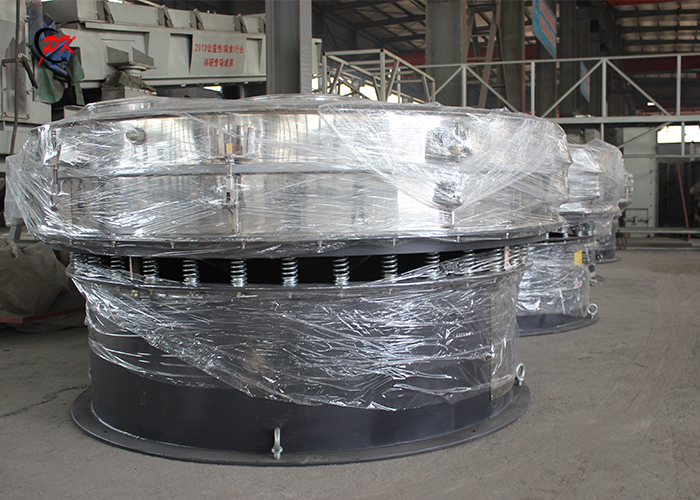

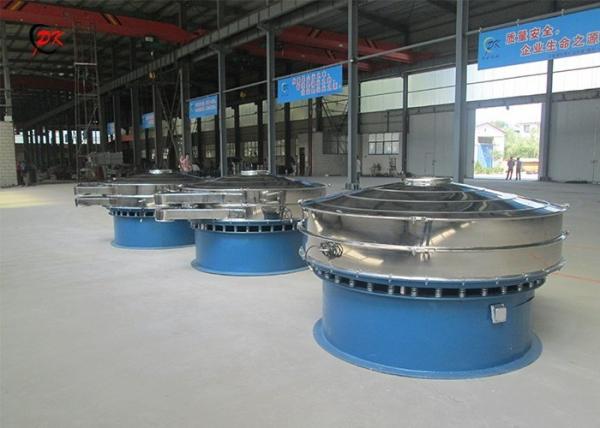

Diamater 1500 Rotary Vibrating Screen Food Processing CE Certificate Images
|
